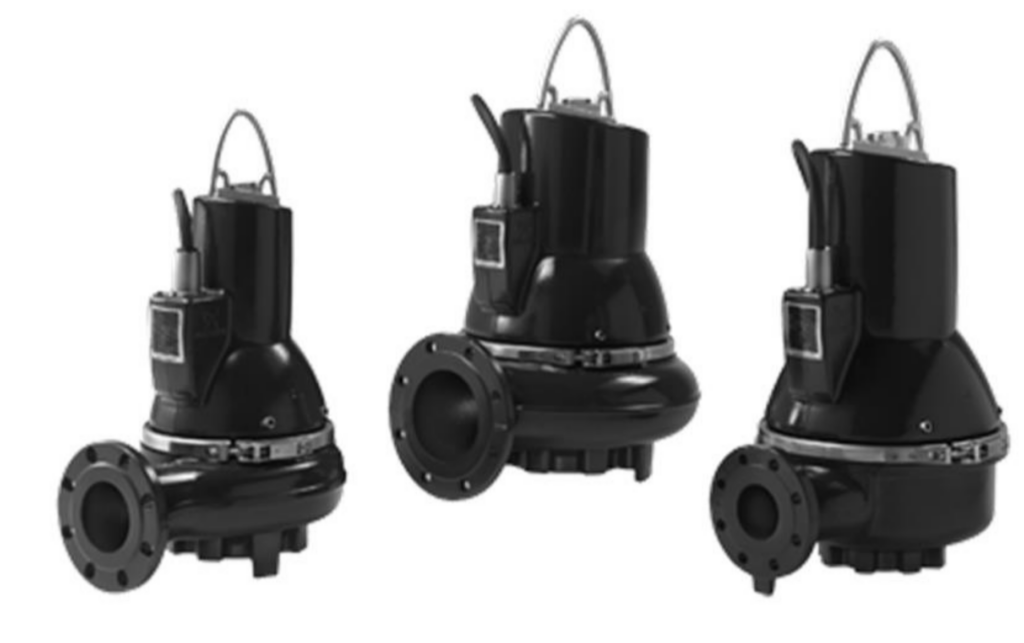

Grundfos SL1
Grundfos SLV
The Grundfos SL pumps are designed to optimise the operation of a system.
Reliability, simple service, and complete system compatibility are some of the main advantages.
Grundfos SL pumps are designed for submerged use in network pumping stations, wastewater treatment plants, public buildings, blocks of flats, and industry.
Wastewater Pumps
For Industrial Applications & Municipalities
The Grundfos SLV and Grundfos SL1 pumps are designed to handle unscreened sewage, effluent, large volumes of surface water and process water in municipal, utility and industrial applications.
The pumps are available with SuperVortex impellers (Grundfos SLV) or high efficient channel impellers (Grundfos SL1), allowing for free passage of solids up to 100 mm in size.
The Grundfos SLV and Grundfos SL1 pumps are designed for permanent submerged installation, e.g. by means of an auto coupling or a guide rail system, or for free-standing installation on a ring stand with a flexible pipe connection.
- Benefits & Features
- Applications

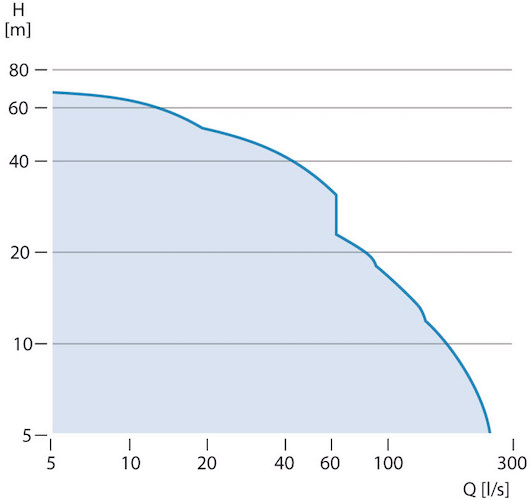

- Flow Curves
Benefits
- SL pumps offer you the best level of reliability due to optimised hydraulics designed with large free passage
- Highest wire-to-water efficiency available, reducing your total costs
- Highest level of service friendliness, making service of the pump trouble-free and time saving
- Plug and pump – all necessary control and protection built into the pump, eliminating complexity
Technical Data
- Motor: O.9 — 11 kW
- Flow rate: up to 45 L/s
- Hmt: 20 m
- Liquid temp: 0 – 40 °C
- Discharge diameter: DN65 to DN100
- Max Free passage: up 100 mm
- Hydraulic efficiency: 83.7 %
Options
- Plug and pump – All necessary control and protection built into the pump, eliminating complexity thanks the SL 0.9-1.5kW AUTOADAPT version
- Stainless steel impeller
- Material variants are available for aggressive fluids
Applications
- Raw water intake
- Wastewater transport
- Water boosting
- Flood control
- Wastewater treatment
- Industrial applications
This information is provided courtesy of Grundfos.
