For Viscous and Delicate Fluids
- Suitable for all very delicate fluids – no tearing
- Variable speed – very large flow range
- Flux without pulsation
- Reversible
- Suitable for fruits, meat, …
- Viscosity up to 1,000,000 cPS
- Thanks to the wide speed range, also suitable for the CIP process
Wangen Twin Pumps
The Economic & Reliable Solution for Sanitary Applications
For applications in the food and cosmetics industry, Wangen has intelligent solutions that meet the strict health regulations of this sector.

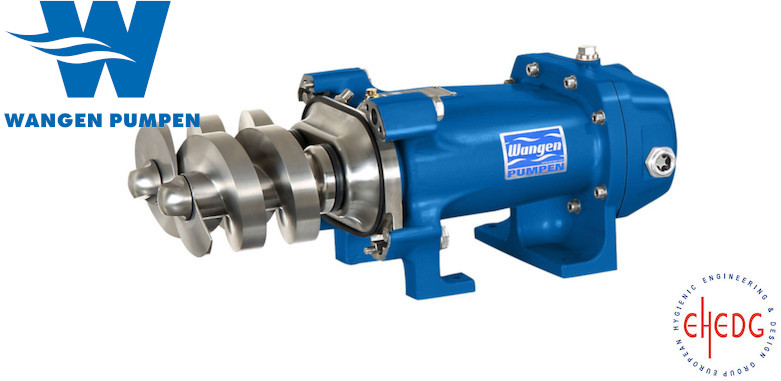

The twin screw pump WANGEN Twin is one of these solutions.
It is part of Wangen’s hygienic conveying solutions and has been designed to convey products from a wide range of viscosities, highly volatile fluids or high gaseous content, safely and for applications requiring a high degree of hygiene and efficiency.
The WANGEN Twin pump can be heated for special products.
Technical characteristics
- Max. flow 200 m3/hour
- Max temperature +130 ° C
- Max. Differential pressure 30 bar
- Viscosity up to 1,000,000 mPas
Exceptional Performances
The WANGEN Twin pump shows excellent results in terms of SIP and CIP cleaning.
Thanks to its unique features it offers
- A very wide range of speeds for conveying liquid products or cleaning fluids as desired.
- High rotation speed in cleaning mode ensures perfect automatic cleaning of the pump
- Its high pressure, up to 25 bar, allows the draining of pipes, pump and equipment by the cleaning liquid.
- Produced according to an EHEDG or 3A certified manufacturing process according to strict health rules.
With the WANGEN Twin pump, avoid time-consuming cleaning, frequent repairs, high wear and costly downtime with a selection of high quality materials and a sophisticated operating principle.
Two pumps in one
It can be used as a main product pump and as a CIP pump.
So additional savings, because the costs for the separate centrifugal pump for CIP cleaning of main circuits, bypass and valves is now useless.
After conveying products, fill the WANGEN Twin pump with cleaning fluid or water. It is then sufficient to operate at very high speed to clean it.
The Wangen Twin pump fulfills two roles: conveying the fluid, its principle function, but also the CIP cleaning function.
More reliability, a smooth conveyor fluid, and a less cleaning pump are another advantage of the Wangen Twin pump.
This information is provided courtesy of Wangen Pumpen GmbH.
