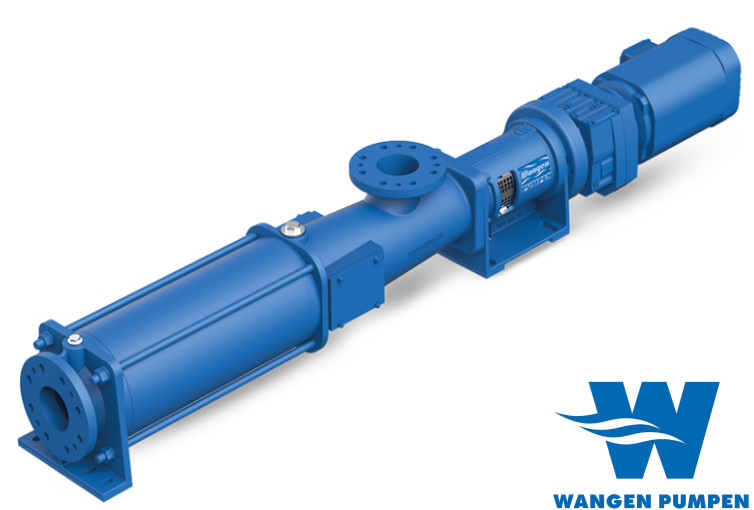

Wangen KL-S Pumps
Wide Range Heavy Duty Progressive Cavity Pumps
Low Operational Costs
Wangen KL-S Series pumps offer excellent value for money and lowest operating costs in its category.
They are extremely reliable and offer good performance even in operation at higher pressure.
Wangen KL-S PC pumps achieve flow rates up to 560 m³/h and pressures up to 48 bar.
The WANGEN Type KL-S progressing cavity pump with its compact bearing pedestal belongs to the basic product group of Pumpenfabrik Wangen.
The main advantage of this pump concept lies in the low life-cycle costs.
The universal pump is suitable for conveying nearly all media with low to extremely high viscosities from 1 mPas up to 3,000,000 mPa s.
- Low Life Cycle Costs
- Large viscosity range
- Good pumping performance even against high pressure
- Excellent price/performance ratio
- Benefits
- Applications
- Features
Main Advantages
- Excellent price/performance ratio
- Low Life Cycle Costs
- Large viscosity range
- Good pumping performance even against high pressure
- High operational reliability
- Consistant diameters at joint connections for constant flow rates
- Rigorous modular principle for high flexibility, low stocking of spare parts, short downtimes for maintenance and repairs
- Almost pulsation-free conveyance
- Optimum service life even with difficult media
- Optionally with base plate
- Insensitive to foreign matter
- Good pumping performance even with abrasive and fibrous materials in the media
- High suction lift (self-priming)
- Constant flow speed in the suction housing prevents desposits or sedimentation
- Low-pulsation, continuous conveyance independent of pressure and viscosity
- Easy to maintain thanks to large cleaning openings
But also
- Mature, robust universal joints with extended service life; non-clogging; with or without prefeeding screw
- Fully developed, robust universal joint with or without pre-feeding screw
- Flexible drive selection (helical geared motors, hydraulic motors)
- Suction housing with large inspection and cleaning openings
- large variety of flange connections
- Available seal types: Stuffing box, mechanical seal, LWD mechanical face seal, lip seals, with and without rinsing or buffer fluid
- Robust bearing pedestal with close-coupled drive and self-centering of the drive
- Stator with S-cone inlet for optimum filling of the pumping chamber
- various rotor/stator geometries (S, L and H geometry)
Suitable for the following media
- Active carbon
- Waste oil
- Inorganic slurry
- Bentonite
- Cement
- Bilge water
- Calcium carbonate
- Chromium hydroxide
- Fertilizer
- Ferrite slurry
- Paint
- Fat
- Flocculants
- Electroplating sludge
- Glycerin
- Liquid manure from chicken
- Sewage sludge
- Glue
- Paperpulp
- Plaster
- Refinery sludge
- Bovine manure
- Cattle slurry
- Saline solution
- Cutting oil
- Vaseline
- Hydrogen peroxide
- Cement
- Zinc oxide
- Coal flotation slurry
- Gypsum slurry
- Gravel wash slurry
- Polymere
- Liquid food
Technical Features
| Flow Rate | Up to 560 m³/h |
| Maximum Pressure | 48 Bar |
| Maximum Temperature | 60° C |
| Maximum Viscosity | 200.000 mPa s |
All data are provided as information only and can be adapted without notice.
This information is provided courtesy of Wangen Pumpen GmbH.
