WANGEN X-UNIT
X-TRACT and X-CUT
Complete system for debris removal and substrate cutting.
The WANGEN X-UNIT is employed in every case where foreign bodies and debris from pumped media must be separated out and cutted:
- Biogas plants
- Biowaste utilisation
- Stable application in agricultural technology
- Liquid manure technology vehicle construction
- Municipal wastewater treatment plants

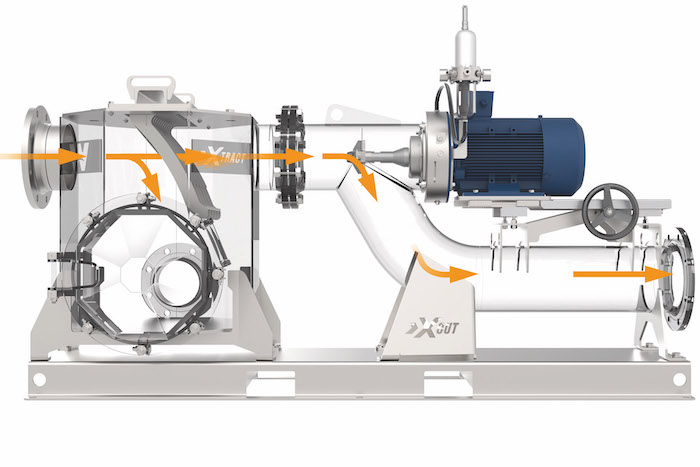

Composition
WANGEN X-UNIT consist in the assembling of
- WANGEN X-TRACT unit, designed to extract all debris susceptible to damage or block piping and pumps
- WANGEN X-CUT unit that cuts all fibers, transported with the fluid into small parts.
WANGEN X-TRACT
Process-optimised adaptation to the pumped media by a simple change of the
screen geometry.
Easy removal of the foreign bodies through large openings.
Problem-free integration into existing systems through standard flange and compact, space efficient construction design.
The modular structure enables installation in case of confined space conditions through separate installation.
Further Benefits
- Very rugged implementation.
- Flow-optimised catch container.
- Foreign body removal through wheelbarrow possible with mounting stand.
- Additional rinse connections available.
The WANGEN X-TRACT is a module for the separation of foreign bodies from the pumped medium, for the protection of systems and pumps. Especially in biogas plants and in agricultural technology, stones, wood, metal parts or other foreign bodies are taken out of the pumped medium, in order to ensure a troublefree and wear reduced operation of the system.

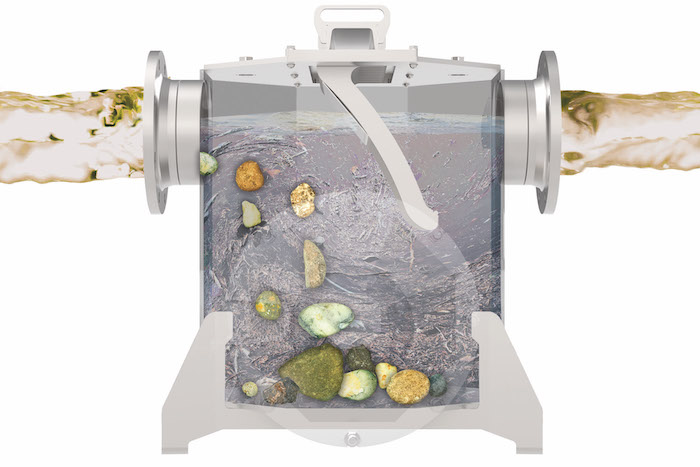

Supply materials with a higher density than water (such as stones) sink down through force of gravity and are routed by the screen and the container geometry to the removal opening.
Therefore no movable component parts are necessary for the separation of such foreign bodies. The geometry of the screen guarantees continuous cleaning through the inflowing pumped medium. The X-TRACT thus avoids faults and associated down times of the entire system.

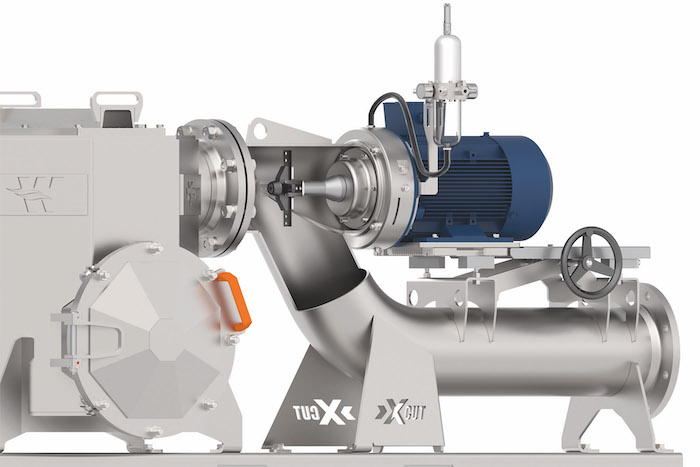

WANGEN X-CUT
The cutting module as an extension to the X-TRACT
Axially-displaceable drive unit that requires no external lifting device necessary
Avoid wear, system shutdown and damage through cutting of foreign bodies to unproblematic
lengths and/or sizes.
Further Benefits
- Increased process safety
- Very rugged implementation
- Compact, space-efficient construction design
- Cutting tool consisting of wear-resistant steel material
- Long service lives due to high-quality materials
and turning blades. Therefore low life-cycle costs, thanks to low wear costs of the cutting unit - Simple and rapid replacement of the cutting knives by means of central tensioning screw
- Powerful motor guarantees reliable cutting
The WANGEN X-CUT is a module for the cutting of foreign bodies in the pumped medium.
The cutting unit can be adapted optimally to the pumped medium by simple modification.
As a result of this, blockages in the system, for example plaited knots or similar, are avoided.
Optimum function in extension with the WANGEN X-TRACT
This information is provided courtesy of Wangen Pumpen GmbH.
